| Specification parameters | Optional configuration |
| Front panel | Aluminum alloy panel, Silver,Integrated keyboard and swipe card module | Optional black or other colors, |
| Back chassis | 1.2mm Steel plate, Silver | Optional industrial black or other colours |
| Adapt motherboard | Low-power ITX motherboard | All low power ITX motherboards of Yanyue are optional |
| LCD screen | 12.1 "TFT, LED backlight; resolution: 1024 * 768; lattice: 0.297 * 0.297; maximum color: 16.7M; brightness: 350cd / ㎡; contrast: 800:1; response speed: 16ms; MTBF: 50000h viewing angle: (+ 80° - 80°) (+ 80° - 80°); |
| Touch screen | 5-wire resistance screen | Customizable Capacitance Screen |
| CPU/GPU | Intel i5 3317U | J1900/3, 4th, 6th and 7th Generation U Series CPUs for Selection |
| Memory | 4G DDR3 | Optional 2G/8G/16G DDR3 notebook memory |
| Hard disk | 128G MSATA | Optional 32G/64G/256G Msata solid state hard disk; 2.5 "500G/1T/2T mechanical hard disk and 512G/1T solid state hard disk |
| Interface | DC12V; 4USB; 2rj45 (Gigabyte); VGA; HDMI, audio output; MIC input; 2 antenna hole position; 4com; DC aviation plug; barcode scanning module | Optional 8USB or 6COM or 1LPT; plug-in location can be customized Phoenix terminal, can customize wide-voltage input |
| Size | 450mm(length)* 252mm(width)* 59mm(thickness) | Weight | 4/4.5KG |
| Industrial Power Supply | 12V@5A adapter, Taiwan Qiaowei Brand | Optional non-configuration |
| Installation mode | Embedded screw installation; Embedded hook installation; VISA wall mounting installation |
| Work and Environment |
| Working temperature | 0～60℃ | Storage temperature | -40～75℃ | Environmental humidity | 0~90% air humidity, no condensation |
| IP Level | Panel IP64 | Vibration | 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration |
| EMC | GB9254-2008 class A | Shock | 10g acceleration, 11ms duration |

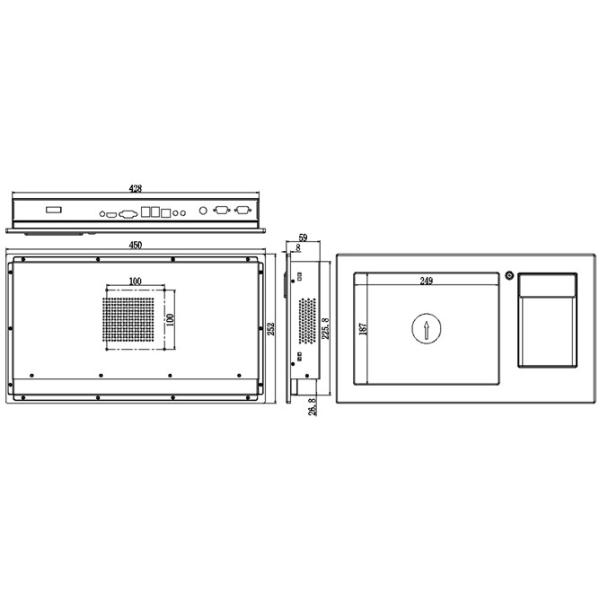

| Installation Dimension Diagram |  |
